|Description Of Product:||Transmisson Line Conductor Stringing Blocks||Inner Diameter Of Sheave:||710mm|
|Outer Diameter Of Sheave:||822mm||Width Of Sheave:||110mm|
|Material Of Sheave:||MC Nylon Or Steel||Conductor Diameter:||Up To 36mm|
MC Nylon Wheels Pulley Block,
OPGW Wire Stringing Pulley Block,

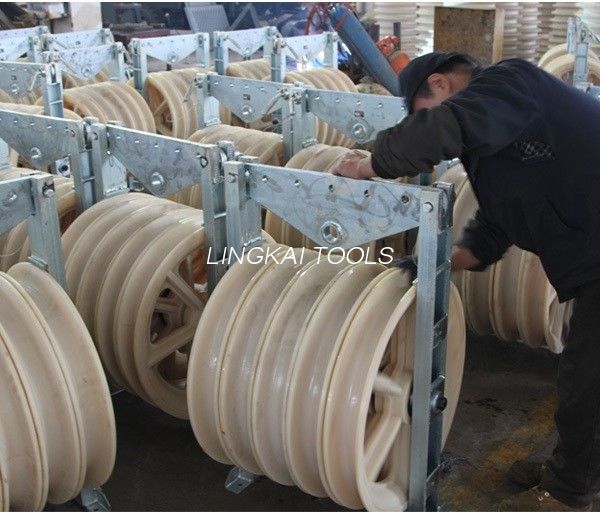

Galvanized Steel Frame Wire Stringing Blocks
822 Mm Large Diameter Mc Nylon Wheels Cable Stringing Nylon Pulley Block
822MM Overhead Power Line Conductor Stringing Blocks are used for transmisson line conductor or OPGW stringing. The conductor sheave is made in MC Nylon, it can be lined with neoprene, The central sheave can be made in steel.
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).
2. The sheave size outer diameter X inner diameter X width: 822mm X 710mm X 110mm
1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.
The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
822MM Nylon Sheaves Conductor Stringing Blocks
|Item No.||Model||ACSR Size Range (mm²)||Working Load (KN)||Weight (kg)||Material of Conductor Sheave|
|10141||SHDN822||500-700||30||39||Nylon, optional can be lined with neoprene|
|10146||SHQ822||500-700||120||285||Central steel sheave|
Application: It is suitable to string single, two, four, SIX AND EIGHT stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.
