Product Details
Place of Origin: Ningbo
Brand Name: Lingkai
Certification: ISO
Model Number: SZ2
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000 sets/month
Type: |
Head Boards For 2 Bundle Conductor |
Model: |
SZ2A |
Applicable Sheave Width: |
75-125mm |
Function: |
Pulling Conductor On Stringing Blocks |
Rated Load: |
Max 180 KN |
Customized: |
Available |
Type: |
Head Boards For 2 Bundle Conductor |
Model: |
SZ2A |
Applicable Sheave Width: |
75-125mm |
Function: |
Pulling Conductor On Stringing Blocks |
Rated Load: |
Max 180 KN |
Customized: |
Available |

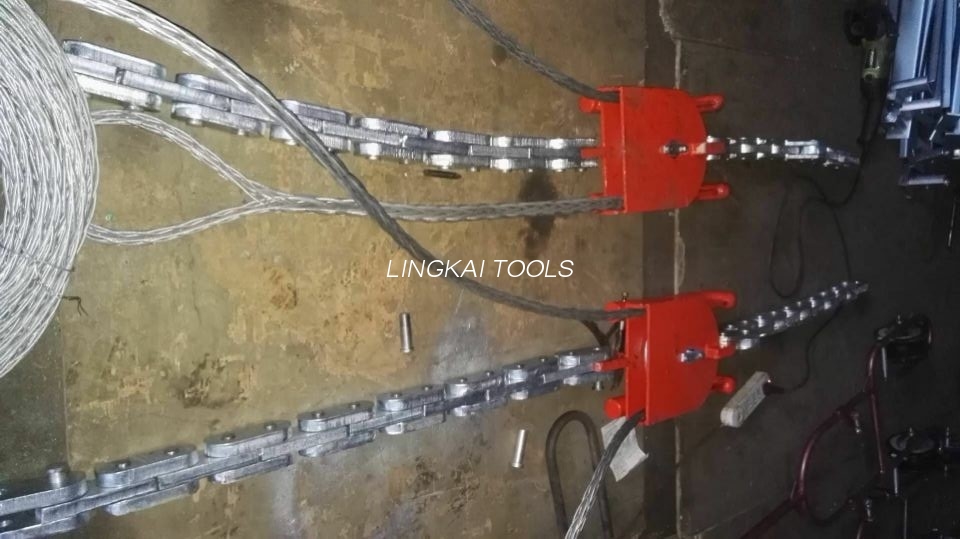

2 Bundled Conductors Running Boards For Pulling Line In Transmission Stringing Site
2 Bundled Conductors Running Boards
| Item No. | Model | Description | Working Load (KN) | Weight (kg) | Marks |
| 17220 | SZ2-8 | Used for 508X75 stringing block | 80 | 17 | Conductors are stringing separately from different bull wheels |
| 17221 | SZ2-8A | Used for 660X100 stringing block | 80 | 19 | |
| 17222 | SZ2-8B | Used for 822X110 stringing block | 80 | 20 | |
| 17223 | SZ2A-8 | Used for 660X100 stringing block | 80 | 90 | Balance pulley structure |
| 17224 | SZ2B-13 | Used for 822X110 stringing block | 130 | 55 | Conductors are stringing separately from different bull wheels |
| 17225 | SZ2C-13 | Used for 916X110 stringing block | 130 | 50 | |
| 17226 | SZ2B-18 | Used for 1024X125 stringing block | 180 | 65 |
Application: It is used for stringing 2 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.
4 Bundled Conductors Running Boards
|
Item No. |
Model |
Description |
Rated Load (KN) |
Weight (kg) |
Marks |
|
17231 |
SZ4A-13 |
Used for 660X100 stringing block |
130 |
96 |
Balance pulley structure |
|
17232 |
SZ4B-13 |
Used for 660X100 stringing block |
130 |
65 |
Conductors are stringing separately from different bull wheels |
|
17233 |
SZ4B-18 |
Used for 822X110 stringing block |
180 |
110 |
|
|
17234 |
SZ4B-25 |
Used for 822X110 stringing block |
250 |
110 |
|
|
17238 |
SZ4C-25 |
Used for 822X110 stringing block |
250 |
110 |
|
|
17239 |
SZ4B-32 |
Used for 1024X125 stringing block |
320 |
125 |
Application: It is used for stringing 4 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.
