Product Details:
Payment & Shipping Terms:
|
| Name: | Overhead Lines Bicycles | Rated Load: | Max. 1.5 KN |
|---|---|---|---|
| Conductor: | Single, 2, 3, 4, 6 | Type: | Bicycle Or Air Cart |
| Diameter Of Conductor: | Max. 160 Mm | Packing: | Plywood Case |
| High Light: | bicycles overhead line stringing tools,four bundle conductor stringing tools |
||

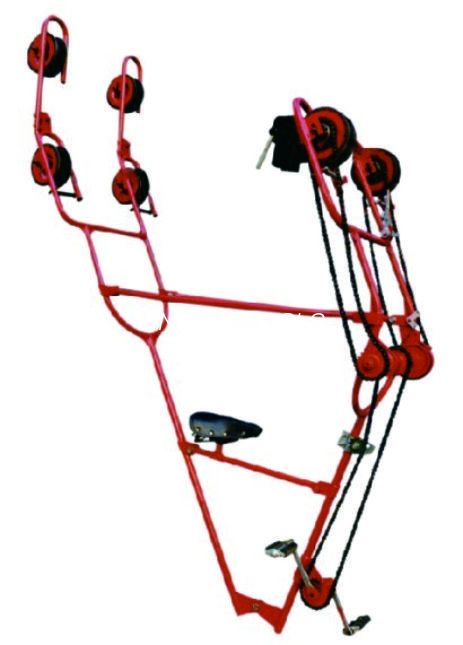

This Four Bundle Conductors Line Cart is commonly used to install the conductor attachments, and overhaul the lines on the four bundle conductor, among others. The distance between the conductors should be clearly explained while an order is placed.
Technical Parameters
| Item Number | Model | Rated Load (kN) | Maximum Through Diameter (mm) | Distance between Conductors (mm) | Weight (kg) |
| 17271 | SFS1 | 1.5 | Φ70 | 450 | 40 |
| 500 | |||||
| 17272 | SFS3 | 1 | Φ40 | 400 450 500 |
36 |
| 450 | 38 | ||||
| 500 | 40 | ||||
| 17273 | FCS400/450 | 1 | Φ60 | 400~450 | 43.5 |
