Slx Wire Rope Swivel Joints Transmission Line Stringing Tools

Slx Wire Rope Swivel Joints Transmission Line Stringing Tools
Slx Wire Rope Swivel Joints Transmission Line Stringing Tools

Large Image :  Slx Wire Rope Swivel Joints Transmission Line Stringing Tools

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO
Model Number: SLX
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: get the latest
Packaging Details: plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 sets/month
Detailed Product Description
Packing: Plywood Case Description: Transmission Line Swivel Joints
Working Load: Max. 320 KN Connection: Pilot Rope With Socket Joint
Type: Fixing Type And Articulated Type Diameter Rope: Max. 38 Mm
Model: SLX-1, SLX-3, SLX-5, SLX-8 SL130 SL180 SL250 Delivery: Within 10 Days
High Light:

swivel joints transmission line stringing tools

,

wire rope transmission line stringing tools

,

wire rope stringing overhead line tools

Swivel Joint connector is used to pull conductors. It is constructed with ball bearings inside, to eliminate the torque force when stringing conductors. The swivel joints are suitable to connect the pulling rope to the mesh socket joints which are installed on the conductors. The swivel joints are also used to connect the pulling rope with running boards.



Transmission Line Stringing Swivels

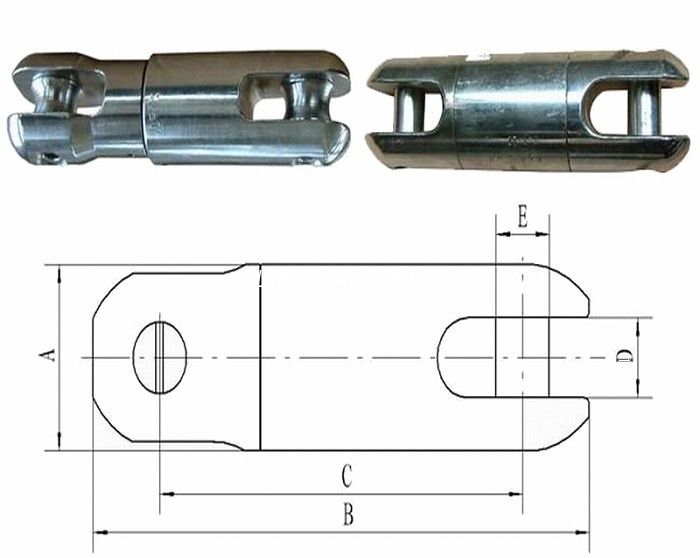

Item No. Model Dimension of Connector (mm) Rated Load (KN) Weight (kg)
A B C D E
17121 SLX-0.5 19 61 40 8 9 5 0.2
17122 SLX-1 30 100 72 12 13 10 0.4
17123 SLX-2 35 120 90 14 14 20 0.55
17124 SLX-3 37 129 92 16 16 30 0.65
17125 SLX-5 42 154 115 18 17 50 1.5
17126 SLX-8 57 220 165 24 22 80 2.4
17127 SL130 62 248 192 26 24 130 3.5
17128 SL180 75 294 222 26 26 180 7.2
17129 SL250 85 331 251 30 30 250 10.6
17130 SL250Y 80 323 243 30 30 250 8.0
17130A SL320 85 346 264 38 30 320 9.7

The swivel joiints are made from high strength alloy steel, galvanized. Specially designed for bearing high radial loads. Please note the swivel joints can not be used for connection of pulling rope. Because the pulling rope should pass the capstans of hydraulic puller.



Slx Wire Rope Swivel Joints Transmission Line Stringing Tools 0
