Product Details:
Payment & Shipping Terms:
|
| Model: | SLWG-1 SLWSG-1 SLWG-2 SLWGS-2 | Working Load: | 10-30 KN |
|---|---|---|---|
| Max. Breaking Force: | 60KN | OPGW Diameter: | 8-25mm |
| Description Of Product:: | OPGW Socket Pulling Grips | Types Of Grips: | With Or Without Protection |
| High Light: | optic fiber cable opgw installation tools,cable socket grips opgw installation tools,opgw installation tools |
||
OPGW Socket Pulling Grips are used for pulling OPGW cable or earth wire in installation or stringing of OPGW or earth wire on overhead power line.

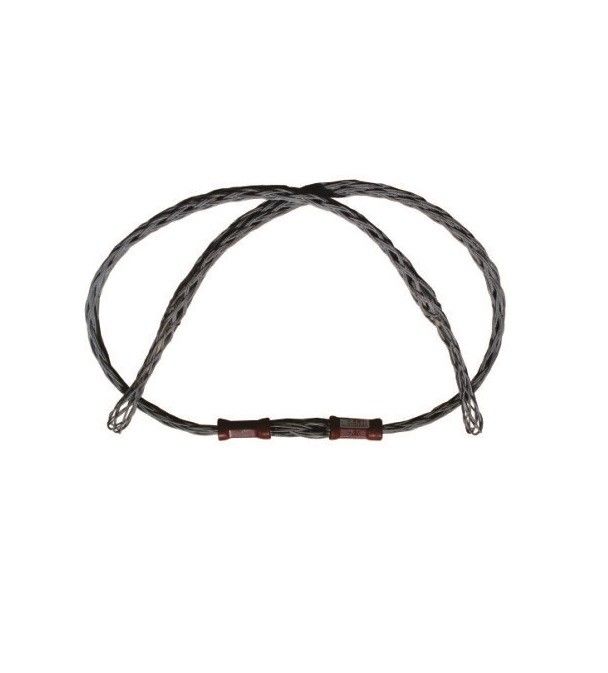

OPGW Pulling Grips (Mesh Socket Joints)
| Single head Item No. | Model | OPGW Size (mm) | Load (KN) | |
| Normal | Rated | Break | ||
| 20105 | SLWG-1 | 10-20 | 10 | 30 |
| 20105A | SLWGS-1 | 10-20 | 10 | 30 |
| 20106 | SLWG-2 | 20-25 | 20 | 60 |
| 20106A | SLWGS-2 | 20-25 | 20 | 60 |
Application: length 1.2m, it is used to hold OPGW or Earth Wire. The pulling grips are specially braided from high strength galvanized steel wire strands. It can hold the OPGW tightly and protect the surface of OPGW well.
