Product Details:
|
| Description: | Conductor Joint Compressor | Compression Force: | Max. 300 Tons |
|---|---|---|---|
| Hydraulic Pressure: | Max. 94 MPa | Type: | Motorised Hydraulic |
| Diameter Of Conductor Joint: | Max. 120 Mm | Stroke Of Compressor: | Max 40mm |
| High Light: | hydraulic compressor transmission line stringing tools,conductor jointing transmission line stringing tools,hydraulic compressor conductor stringing tools |
||

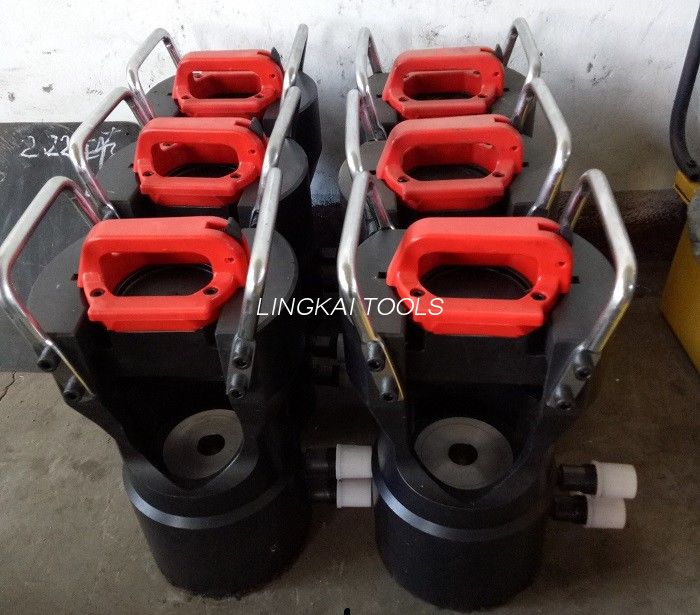

Hydraulic Compressor Machine is used for conductor jointing on overhead transmisson line. The set include Hydraulic compressor, Motorised hydraulic pump, and die sets according to different joint of conductor.
Hydraulic Compressors for Conductor Joints
| Item No. | Model | Max. Compression Force (KN) | Max. Hydraulic Pressure (MPa) | Max. ACSR Size (mm²) | Stroke (mm) | Weight (kg) |
| 16101 | QY-25 | 250 | 60 | 240 | 22 | 6 |
| 16102 | QY-35 | 350 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106 | QY-250 | 2500 | 94 | 2500 | 35 | 126 |
Application: The hydraulic compressor head is used with motorised hydraulic pump for compression of conductor joint or earth wire joint. It is casted from high strength steel.
Note:
- QY-25, QY-35 operated by hand or electric power pump; QY-65, QY-125, QY-200 operated by motorized hydraulic pump station with high pressure.
- Please refer to Item No.16141-16153 for hydraulic pump stations; Item No. 16161-16163 for hand operated pumps.
- Supplied with compression die sets. (See Item No. 16121-16126 and 16131-16134 for dies.)
Motorized Hydraulic Pump Station for QY-125 (Model: YBG-94WQ)
| Item No. | Description | Max. Hydraulic Pressure (MPa) | Oil Flow (L/min) | Power (KW) | Weight (kg) |
| 16146 | Gasoline motor driven hydraulic pump station mounted on hand cart | 75 | 1.5 | 4.1 | 68 |
Note: The pump stations only act as power sources for hydraulic compressors or other equipment.
The Gasoline motor is HONDA imported from Japan
Hexagon Compression Die sets
| Item No. | Matching Compressor | Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
| 16121 | QY-25 | Copper or Aluminum Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
| 16123 | QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16124 | QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16125 | QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
| 16126 | QY-250 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
