Product Details:
Payment & Shipping Terms:
|
| Working Load: | 8/16/32 KN | Diameter Of Wire Rope: | 8/11.6/16 Mm |
|---|---|---|---|
| Hand Operated Force: | 343 / 400 / 441 N | Transmission Line Stringing Tools: | Tirfor Hand Winch |
| Stroke: | 40MM | Standard Length Of Wire Rope: | 20 Meter |
| Weight: | 6.8 / 13 / 25 Kg | Packing: | Plywood Case |
| High Light: | 32kn tirfor cable puller,overhead line stringing tirfor cable puller,32kn tirfor cable winch |
||

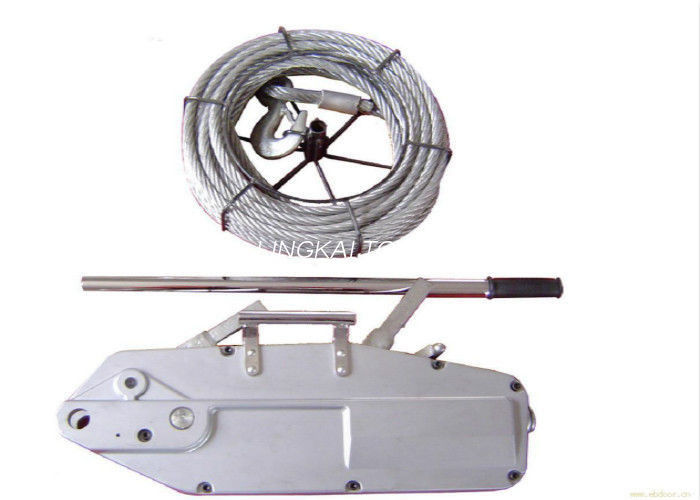

Tirfor Cable Puller Winch is used for lifting and pulling operation in transmission line construction project. It is also used for sagging operation
Tirfor Pulling Winch
| Item No. | Model | Lifting Load (KN) | Pulling Load (KN) | Steel Rope Dia.(mm) | Stroke (mm) | Steel Rope Length (m) | Weight (kg) |
| 14183 | HSS408 | 8 | 12.5 | Φ8 | ≥40 | 20 | 6.8 |
| 14184 | HSS416 | 16 | 25 | Φ11.6 | ≥40 | 20 | 13 |
| 14185 | HSS432 | 32 | 50 | Φ16 | ≥16 | 20 | 25 |
Application: It is used to lifting and tension operation during transmission line construction and stringing. The working load on the handle is not more than 441 KN.
Features: With ratchet system, easy to operate and turn flexible.
All tTirfor machines are equipped with Handles and wire ropes.
Our tirfor pulling winches are designed and produced with high quality materials and are very durable in transmission line construction. They are exported to more than 30 countries in the world.
