Product Details:
Payment & Shipping Terms:
|
| Model: | ST25R ST50R ST50S ST100S | Working Load: | 25KN, 50KN, 100KN |
|---|---|---|---|
| Weight: | 13-97 Kgs | Number Of Conductors: | 2, 3, 4, 6 |
| Description: | Conductor Lifting Tools Hooks | Packing: | Plywood Case |
| High Light: | lifting conductor stringing tools,bundled conductor stringing tools,25kn conductor stringing tools |
||
Conductor Lifters are used for lifting bundled conductors in sagging operation after stringing. We design and produce different types of lifting tools according to different working load and bundled conductors
Conductor Lifting Plate Hooks
| Item No. | Model | Work load (KN) | Lining Length (mm) | Lining Width (mm) | Weight (kg) |
| 19101 | ST8 | 8 | 60 | 36 | 1 |
| 19102 | ST12 | 12 | 120 | 48 | 2.5 |
| 19103 | ST25 | 25 | 200 | 40 | 7 |
| 19104 | ST40 | 40 | 260 | 50 | 10.5 |
| 19105 | ST60 | 60 | 265 | 60 | 12 |
Application: Lifting hooks are used for lifting conductors on transmission line. Customer can use it to assemble different conductor lifter according to their requirement.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.

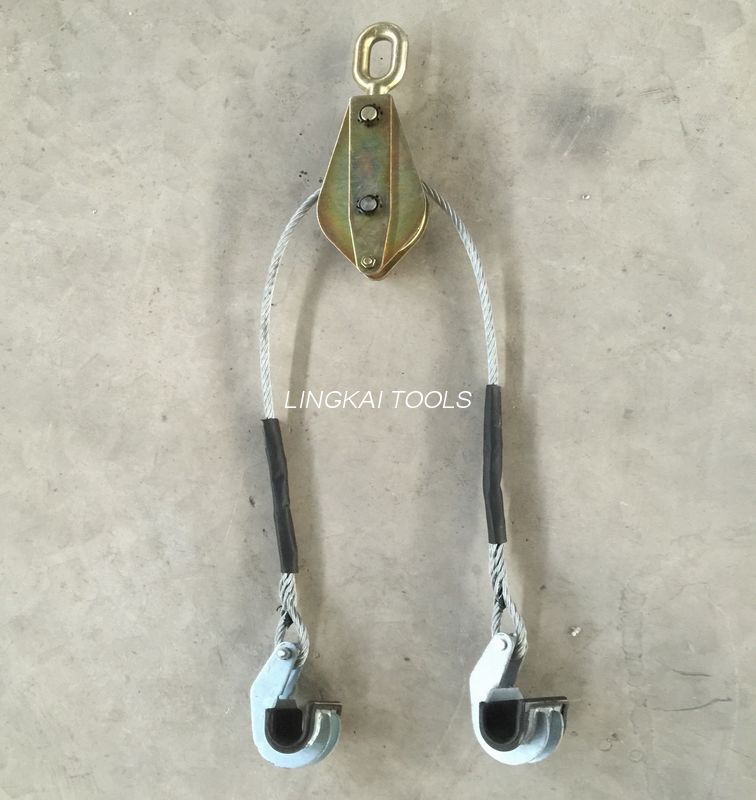

Lifting Tools for Bundled Conductors
| Item No. | Model | Work load (KN) | Lining Length (mm) | Weight (kg) |
| 19112 | ST25R | 2 x 12 | 120 | 13 |
| 19113 | ST50R | 2 x 25 | 200 | 26 |
| 19114 | ST80R | 2 x 40 | 260 | 40 |
Application: Conductor Lifting Tools are used for lifting 2 bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor
Lifting Tools for 4 Bundled Conductors
| Item No. | Model | Work load (KN) | Lining Length (mm) | Weight (kg) |
| 19115 | ST50S | 4 x 12 | 120 | 35 |
| 19116 | ST100S | 4 x 25 | 200 | 67 |
| 19117 | ST160S | 4 x 40 | 260 | 97 |
Application: Conductor Lifting Tools are used for lifting four bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.
