Product Details:
Payment & Shipping Terms:
|
| Diameter Of Conductor: | Max 48mm | Model Of Conductor Stripper: | 4 Models |
|---|---|---|---|
| Type Of Mould: | Fixed Type, Or Adjustable | Weight: | 33-5kgs |
| Description: | Conductor Trimmer | Conductor Size: | 240-1250 Mm2 |
| Model: | LX1, LX2, LX3 | Packing: | Plywood Case |
| High Light: | trimmer conductor stringing tools,acsr conductor stringing tools,acsr conductor jointing stringing tools |
||

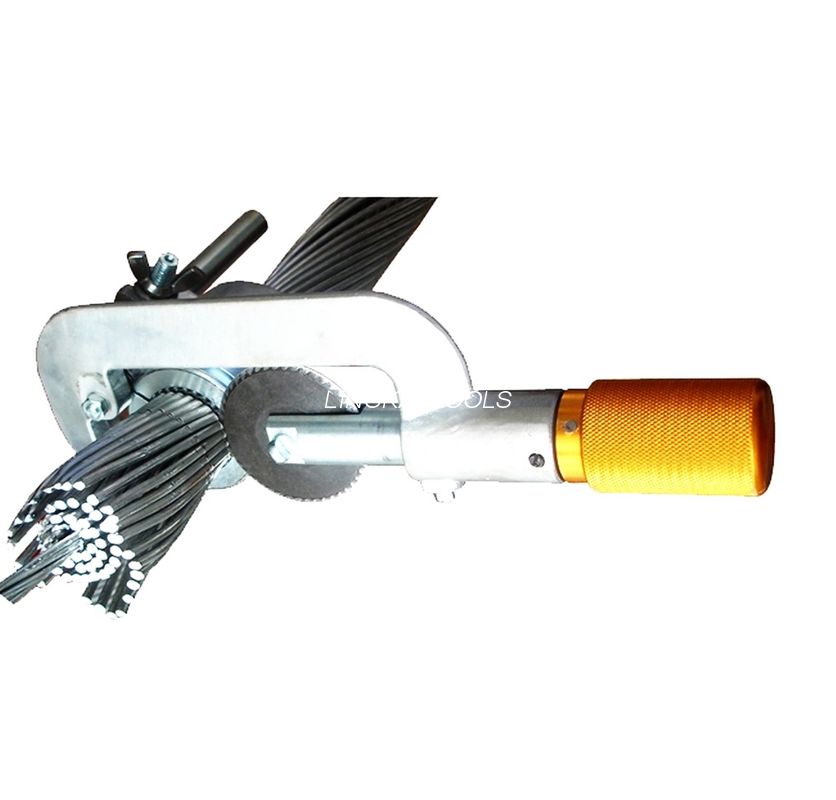

Conductor Trimmer is used to remove the aluminum strands from ACSR conductor without damage to the steel core when preparing conductor for compression. It is one of import transmission line tools for high voltage transmission line stringing work, it can save time for preparing the ACSR conductors, promote working efficiency and reduce the damage to conductors.
onductor Trimmers
| Item No. | Model | Trimming Capacity | Weight (kg) | Bushing Set (mm) |
| 16281 | LX1 | ACSR240-400 mm² | 2.7 | Φ22, 24, 25, 27, 29,31 |
| 16282 | LX2 | ACSR500-720 mm² | 3 | Φ31, 34, 36 |
| 16283 | LX3 | ACSR240-720 mm² | 3.5 | Φ22, 24, 27, 29,34, 36 |
| 16283A | LX3A | ACSR900-1250 mm² | 4.8 | Φ40.6, 42.8, 45.3, 48.0 |
Application: It is specially designed to remove the aluminum strands from ACSR conductors without damage to the steel core when preparing conductors for compression joining.
Features: The compact unit is casted from aluminum alloy, lightweight, dependable, and easy to be carried.
1. We can also make special Bushing set according to customer's requirement.
2. Customer can choose different model of conductor stripper according to their conductors in the project
3. We also designed special conductor trimmer for foreign countries because their requirement is different with different ACSR conductor
4. All the products are packed with aluminum alloy case or special sofe case, and loaded in plywood case. They are always delivered with other transmission line stringing tools together.
