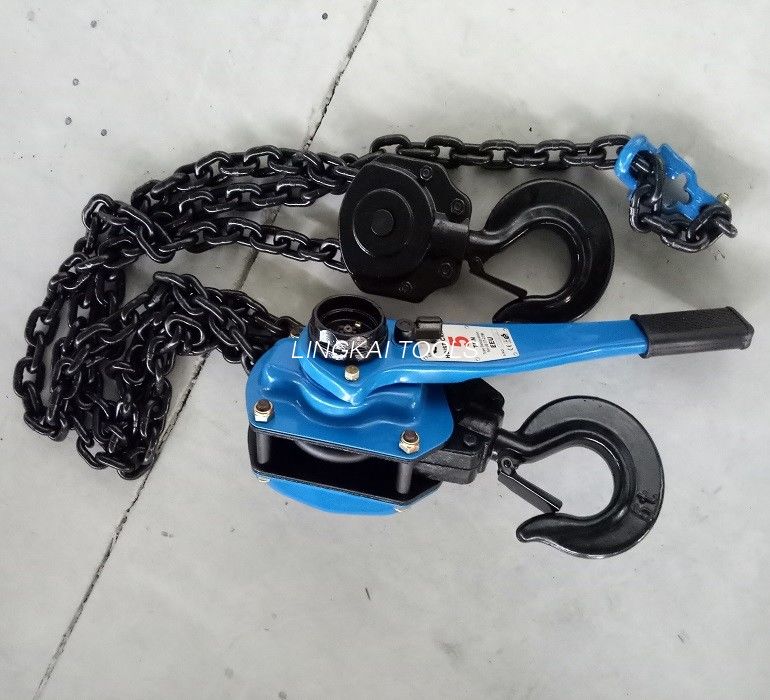

Lever Block Ratchet Manual Chain Hoist Of Overhead Line Stringing Equipment Accessories

Lever Block Ratchet Manual Chain Hoist Of Overhead Line Stringing Equipment Accessories
Lever Block Ratchet Manual Chain Hoist Of Overhead Line Stringing Equipment Accessories Lever Block Ratchet Manual Chain Hoist Of Overhead Line Stringing Equipment Accessories Lever Block Ratchet Manual Chain Hoist Of Overhead Line Stringing Equipment Accessories

Large Image :  Lever Block Ratchet Manual Chain Hoist Of Overhead Line Stringing Equipment Accessories

Product Details:
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO
Model Number: HSH-CII1.5 HSH-CII3.0 HSH-CII6.0
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: Wooden case
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 sets/month
Detailed Product Description
Description: Lever Block Ratchet Chain Hoist Model: HSH-CII1.5 HSH-CII3.0 HSH-CII6.0
Max. Length Of Chain: 5 Meter Weight Of Ratchet Hoist: 7-49kgs
No. Of Chains:: One Or Two Max. Working Load: 9 Tons
High Light:

9t overhead line stringing equipment

,

overhead line stringing equipment accessories

,

stringing equipment for overhead power lines

Ratchet Leave Chain Hoists are used for lifting and sagging operation in the transmission line stringing project. The Hoists are equipped with safety device.



Ratchet Lever Hoist with Chain

MODEL HSH-CII1.5 HSH-CII3 HSH-CII6
Item No. 14222 14232 14242
CAPACITY (TONS) 1.5 3 6
STANDARD LIFT (M) 3 3 3
RUNNING TEST LOAD (KN) 22.5 37.5 75.0
EFFORT REQUIRED TO LIFT RATED LOAD (N) 220 320 340
STRAND NO. OF LOAD CHAIN 1 1 2
LOAD CHAIN DIAMETER (MM) 8 10 10
DIMENSIONS (MM) A 203 215 200
B 118 130 130
C 155 200 200
D 45 50 64
H 380 480 600
L 370 410 410
K 36 40 50
NET WEIGHT (KG) 11.8 21 32
PACK MEASUREMENT (MM) 46.5X15.5X19 51X19X21.5 53X22X21.5
EXTRA WEIGHT OF PER METER 1.4   4.4

Application: It is used to lift goods or pulling the conductors during the sagging operation.

Features:

1. Solid Bearing is adopted in the joint of load sprocket wheel and wall panel, to improve the flexibility and working efficiency.

2. Needle bearing is adopted in the joint of major axis and load sprocket wheel, to improve the flexibility and working efficiency.

3. The bottom hook can swivel 360 degrees freely under load.

4. Unique Overload Protection: Uni-directional free wheel device to ensure the smooth descent of the hoist

Hand Operated Chain Hoists

Item No. Chain length 1.5m 14191 14201 14211 14221 14231 14241
Chain length 3m 14192 14202 14212 14222 14232 14242
Chain length 4m 14193 14203 14213 14223 14233 14243
Chain length 5m 14194 14204 14214 14224 14234 14244
Model HSH-CII 0.25 0.5 0.75 1.5 3 6
Rated Load (KN) 2.5 5 7.5 15 30 60

Application: It is used with conductor grips to tension conductors.

Chain Hoists

Item No. Chain length 2.5 m 14281 14291 14301 14311
Chain length 3 m 14282 14292 14302 14312
Chain length 4 m 14283 14293 14303 14313
Chain length 5 m 14284 14294 14304 14314
Chain length 6 m 14285 14295 14305 14315
Chain length 8 m 14286 14296 14306 14316
Chain length 10 m 14287 14297 14307 14317
Chain length 12 m 14288 14298 14308 14318
Model HS-0.5A HS-1A HA-1.5A HS-2A
Rated Load (KN) 5 10 15 20
Min. Distance between Hooks (mm) 280 320 390 410
Item No. Chain length 3 m 14321 14331 14341 14351
Chain length 4 m 14322 14332 14342 14352
Chain length 5 m 14323 14333 14343 14353
Chain length 6 m 14324 14334 14344 14354
Chain length 8 m 14325 14335 14345 14355
Chain length 10 m 14326 14336 14346 14356
Chain length 12 m 14327 14337 14347 14357
Model HS-3A HS-5A HA-10A HS-20A
Rated Load (KN) 30 50 100 200
Min. Distance between Hooks (mm) 485 600 820

1040





Package

1. The equipment and tools will be loaded in plywood case.

2. It also can be packed in steel frame case or wooden case
