Product Details:
Payment & Shipping Terms:
|
| Shifts: | 3 Forward 1 Backward | Max. Pulling Speed: | 35.6 Meter / Minute |
|---|---|---|---|
| Engine: | Diesel Or Honda Petrol Engine | Description: | Engine Powered Winches |
| Capstan: | Single Or Double | Max. Pulling Force: | 50 KN |
| High Light: | 50KN Motorized Winches,Motorized Winches Overhead Line Stringing Tools,Double Drum Motorized Winches |
||
Double Drum 50 KN Motorized Winches Of Transmission Line Construction Equipment
Motorised Winches are used for tower erection,material lifting and cable stringing or pulling operation in overhead power line construction project. We have designed and produced petrol or diesel engine powered winches for more than 20 years, we have single capstan and double capstans winches, the winch with two wheels capstan can be used for pulling or stringing operation in mountain areas.

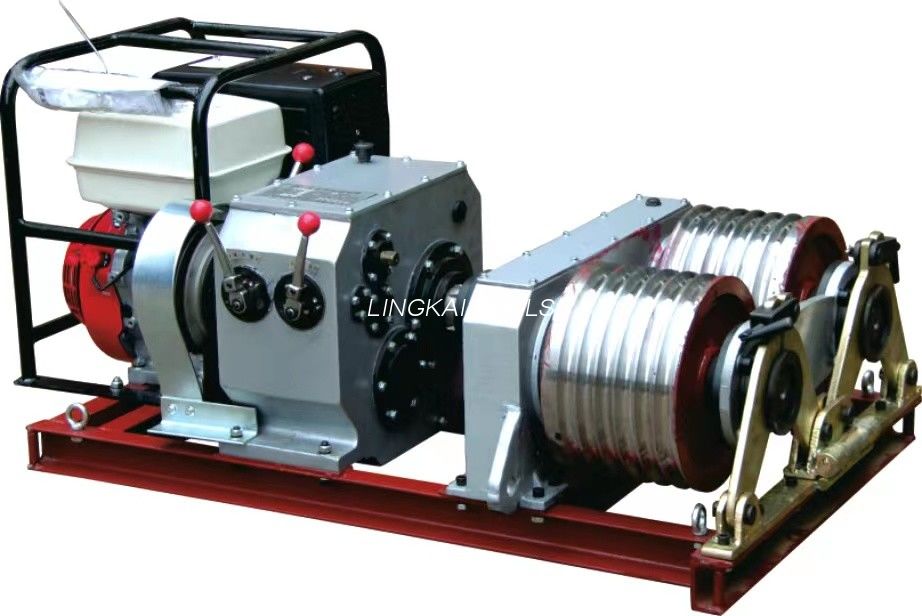

Dull-bull Wheel Winches (3T)
Application: Used for tower erection, hoisting goods, conductor or earth wire stringing operation in line construction.
Features: Dual-bull wheel structure could minimize the damage to steel ropes.
| Item No. | 09151 | 09152 | |
| Model | JJCS-30 | JJQS-30 | |
| Engine Model | Diesel engine R175 | Honda GX270 | |
| Engine Power(hp) | 6 | 9 | |
| Engine Speed (rpm) | 2600 | 3000 | |
| Pull force (KN) / Pull speed (m/min) | I shift | 30/5.7 | 30/7.43 |
| II shift | 18.9/9.1 | 19.2/11.8 | |
| III shift | 7.6/22.7 | 7.2/31.4 | |
| Reverse shift | -/6.5 | -/8.4 | |
| Diameter of Capstan (mm) | Φ240 | Φ240 | |
| Dimension (mm) | 1000 x 670 x 600 | 1000 x 670 x 600 | |
| Weight (kg) | 260 | 242 | |
There is mechanical brake system composed in the Gear Box. The brake can hold the steel wire rope when there is emergency.
Dull-bull Wheel Winches (5T)
| Item No. | 09162 | |
| Model | JJCS-50T | |
| Diesel Engine Power (KW) | 9 | |
| Diesel Engine Model | S195G | |
| Diesel Engine Speed (rpm) | 2000 | |
| Pull force (KN) / Pull speed (m/min) | I, III shift | 50/3.1, 40/9.6 |
| II, V shift | 45/7.1, 17/22.3 | |
| IV, VI shift | 33/11.3, 10/35.6 | |
| Reverse shift | -/7.35 | |
| Diameter of Capstan (mm) | Φ300 | |
| Dimension (mm) | 2230 x 1210 x 1135 | |
| Weight (kg) | 700 | |
Application: Used for tower erection, hoisting goods, conductor and earth wire (OPGW)
stringing operation in power & telecom line construction.
Features: The winches are mounted on the trailer, could be dragged in short distance. There is mechanical brake system composed in the Gear Box. The brake can hold the steel wire rope when there is emergency.
