Product Details:
Payment & Shipping Terms:
|
| Max. Length Of Chain: | 5 Meter | Packing: | Plywood Case |
|---|---|---|---|

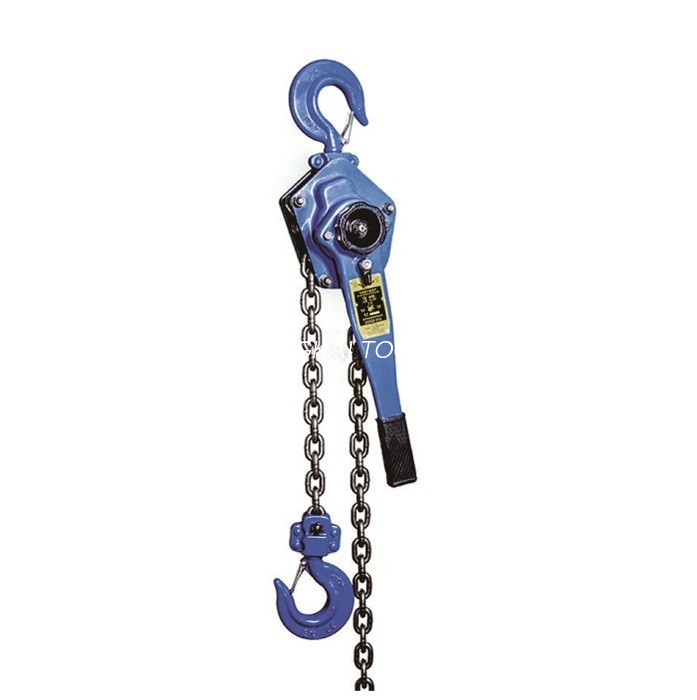

| Weight Of Ratchet Hoist: | 7-49 Kg | Description: | Lever Block Ratchet Chain Hoist |
| No. Of Chains: | One Or Two | Max. Working Load: | 9 Tons |
| High Light: | 9 Tons Manual Lever Chain Hoist,Manual Ratchet Chain Hoist,Overhead Line Tools Manual Chain Hoist |
||
Applicatoin Apply to lifting parts and traction. Tigntening steel stranded wire, aluminum stranded wire and kind wires.
Hand Operated Chain Hoists
| Item No. | Chain length 1.5m | 14191 | 14201 | 14211 | 14221 | 14231 | 14241 |
| Chain length 3m | 14192 | 14202 | 14212 | 14222 | 14232 | 14242 | |
| Chain length 4m | 14193 | 14203 | 14213 | 14223 | 14233 | 14243 | |
| Chain length 5m | 14194 | 14204 | 14214 | 14224 | 14234 | 14244 | |
| Model HSH-CII | 0.25 | 0.5 | 0.75 | 1.5 | 3 | 6 | |
| Rated Load (KN) | 2.5 | 5 | 7.5 | 15 | 30 | 60 | |
Application: It is used with conductor grips to tension conductors.
Chain Hoists
| Item No. | Chain length 2.5 m | 14281 | 14291 | 14301 | 14311 |
| Chain length 3 m | 14282 | 14292 | 14302 | 14312 | |
| Chain length 4 m | 14283 | 14293 | 14303 | 14313 | |
| Chain length 5 m | 14284 | 14294 | 14304 | 14314 | |
| Chain length 6 m | 14285 | 14295 | 14305 | 14315 | |
| Chain length 8 m | 14286 | 14296 | 14306 | 14316 | |
| Chain length 10 m | 14287 | 14297 | 14307 | 14317 | |
| Chain length 12 m | 14288 | 14298 | 14308 | 14318 | |
| Model | HS-0.5A | HS-1A | HA-1.5A | HS-2A | |
| Rated Load (KN) | 5 | 10 | 15 | 20 | |
| Min. Distance between Hooks (mm) | 280 | 320 | 390 | 410 | |
| Item No. | Chain length 3 m | 14321 | 14331 | 14341 | 14351 |
| Chain length 4 m | 14322 | 14332 | 14342 | 14352 | |
| Chain length 5 m | 14323 | 14333 | 14343 | 14353 | |
| Chain length 6 m | 14324 | 14334 | 14344 | 14354 | |
| Chain length 8 m | 14325 | 14335 | 14345 | 14355 | |
| Chain length 10 m | 14326 | 14336 | 14346 | 14356 | |
| Chain length 12 m | 14327 | 14337 | 14347 | 14357 | |
| Model | HS-3A | HS-5A | HA-10A | HS-20A | |
| Rated Load (KN) | 30 | 50 | 100 | 200 | |
| Min. Distance between Hooks (mm) | 485 | 600 | 820 |
1040 |
|
Package
1. The equipment and tools will be loaded in plywood case.
2. It also can be packed in steel frame case or wooden case.
