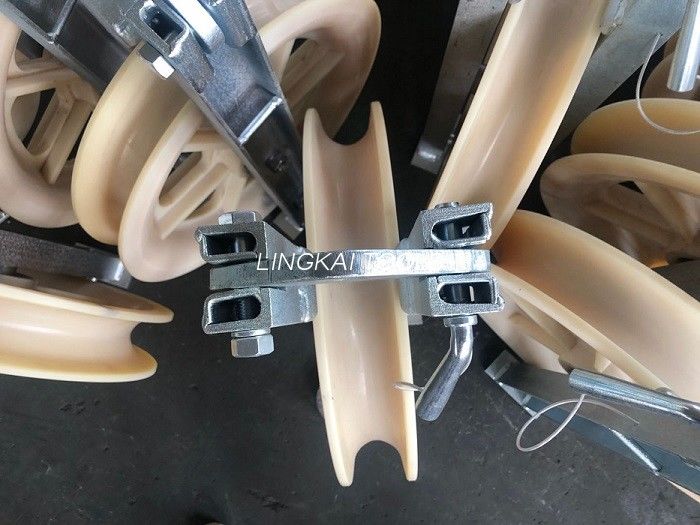

Sheave Hook Cable Roller Wheel Pulley Nylon Aluminium Alloy Single Stringing Block

Sheave Hook Cable Roller Wheel Pulley Nylon Aluminium Alloy Single Stringing Block
Sheave Hook Cable Roller Wheel Pulley Nylon Aluminium Alloy Single Stringing Block Sheave Hook Cable Roller Wheel Pulley Nylon Aluminium Alloy Single Stringing Block

Large Image :  Sheave Hook Cable Roller Wheel Pulley Nylon Aluminium Alloy Single Stringing Block

Product Details:
Place of Origin: Ningbo China
Brand Name: Lingkai
Certification: ISO CE
Model Number: SHD/SHDN
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: get the latest
Packaging Details: wooden case/ container
Delivery Time: 3-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/month
Detailed Product Description
Size: Standard/customized Sheave: Aluminum/nylon
Suitable Conductor: 25-500sqmm Application: Stringing Line
High Light:

Single Cable Stringing Block

,

Hook Roller Pulley Wheels

,

Aluminium Alloy Stringing Pulley

SHEAVE HOOK CABLE ROLLER WHEEL PULLEY NYLON ALUMINIUM ALLOY SINGLE STRINGING BLOCK

Use and Characteristic

Apply to pull conductor on straight pole.Splicing sleeve,steel wire rope and connector can pass through the groove.

Pulley Block With Hook Single Sheave is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.

The wheel groove can be through with clamp pipe, aluminum tube, connector etc..

The material is aluminum alloy and MC nylon .

Pulley pendant is combined plate and hook type.



The stringing roller is suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead transmission line.
The sheaves of stringing block are made of aluminum alloy lined with neoprene or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel



TABLE DESCRIPTION

Item number Model Suitable conductor

Rated load

(kN)

Weight

(kg)

Remark
10171 SHD-120×30 LGJ25~70 5 1.5 Aluminium sheave
10172 SHD-160×40 LGJ95~120 10 2.5
10173 SHD-200×40 LGJ150~240 15 4
10174 SHD-200×60 LGJ150~240 15 4.6
10175 SHD-250×40 LGJ150~240 20 4.6
10176 SHD-250×60 LGJ300~400 20 6
10177 SHD-270×60 LGJ300~400 20 7
10178 SHD-320×60 LGJ300~400 20 9.5
10179 SHD-400×80 LGJ400~500 20 15
10191 SHDN-120×30 LGJ25~70 5 1.5 Nylon sheave
10192 SHDN-160×40 LGJ95~120 10 2.5
10193 SHDN-200×40 LGJ150~240 15 3.6
10194 SHDN-200×60 LGJ150~240 15 4
10195 SHDN-250×40 LGJ150~240 20 4
10196 SHDN-250×60 LGJ300~400 20 4.5
10197 SHDN-270×60 LGJ300~400 20 5.6
10198 SHDN-320×60 LGJ300~400 20 6.7
10198-1 SHDN-320×80 LGJ300~400 20 8
10199 SHDN-400×80 LGJ400~500 20 13
10199-1 SHDN-400×100 LGJ400~500 20 15
10199-2 SHDN-400×120 LGJ400~500 20 18



Sheave Hook Cable Roller Wheel Pulley Nylon Aluminium Alloy Single Stringing Block 0
