Product Details:
Payment & Shipping Terms:
|
| Features: | Can Be Customizec | Name: | Splice Protection Sleeves |
|---|---|---|---|
| Application: | Protecting The Ground Wire | Site: | Overhead Line Stringing |
| High Light: | Crimping Splice Protection Sleeves,Steel Strand Crimping Splicing Sleeve,Stringing Splicing Protector |
||
Introduction

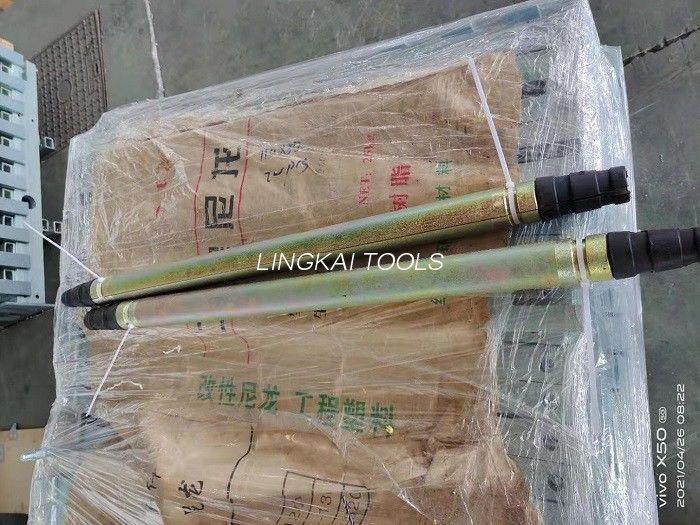

Apply to protecting the ground wire pressure tube on steel strand releasing and make it
avoid torsion when pass throuth pulleys.If the size of crimp tube is different from the standard, the dimension of splicing sleeve should be indicated in the contract.
Notes
Please writing the dimension of splice in contact if the splicing sleeve differ from standard.
| Item number | Model | Main size(MM) | Application ground wire | |||
| D | L | d | L1 | |||
| 17213 | J55G | Φ30 | 450 | Φ24 | 280 | GJ50,GJ55 |
| 17214 | J70G | Φ30 | 510 | Φ24 | 340 | JLB65,GJ70 |
| 17215 | J80G | Φ34 | 510 | Φ27 | 340 | GJ80 |
| 17216 | J95G | Φ34 | 585 | Φ27 | 415 | JLB95 |
| 17217 | J100G | Φ38 | 590 | Φ28 | 390 | LGJ50/30,LGJ100 |
| 17218 | J120G | Φ40 | 660 | Φ30 | 440 | GJ120,JLB120 |
| 17219 | J150G | Φ45 | 850 | Φ37 | 530 |
GJ150,LGJ70/40, LGJ95/55 |
