Product Details:
Payment & Shipping Terms:
|
| Features: | Protector Stringing Tools | Name: | Splice Protection Sleeves |
|---|---|---|---|
| Material: | Steel | Application: | Transmission Line Site |
| High Light: | ACSR Splice Protection Sleeves,Strand Splicing Sleeve Protector,Stringing Splice Protection Sleeves |
||

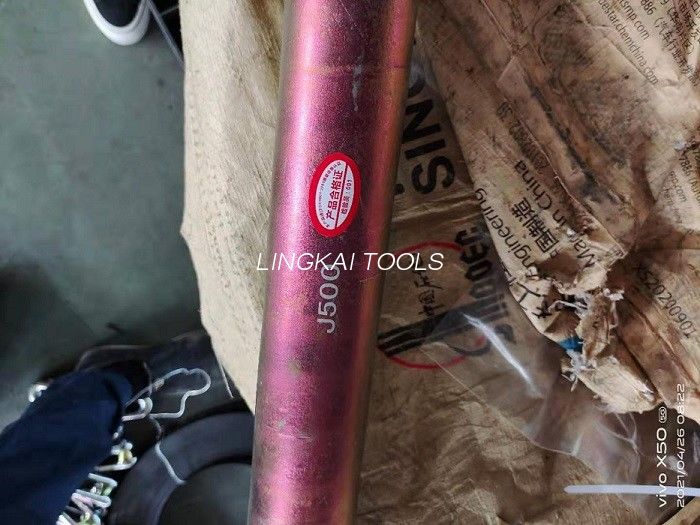

Introduction
Apply to protecting wire pressure tube on ACSR releasing and make it avoid torsion when pass
through pulleys. If the size of crimp tube is different from the standard, the dimension of splicing sleeve should be indicated in the contract.
Notes
Please writing the dimension of splice in contact if the splicing sleeve differ from standard.
| Item number | Model | Main size(MM) |
Application conductor(MAX) |
|||
| D | L | d | L1 | |||
| 17201 | J240B | Φ45 | 850 | Φ38 | 530 | LGJ240/55 |
| 17202 | J300B | Φ51 | 940 | Φ43 | 600 | LGJ300/50 |
| 17203 | J400B | Φ57 | 995 | Φ47 | 665 | LGJ400/50 |
| 17204 | J500B | Φ68 | 1080 | Φ56 | 740 | LGJ500/65 |
| 17205 | J630B | Φ83 | 1180 | Φ63 | 800 | LGJ630/55 |
| 17206 | J720B | Φ83 | 1196 | Φ63 | 816 | LGJ720/55 |
| 17207 | J900B | Φ89 | 1180 | Φ73 | 800 | LGJ900/75 |
| 17208 | J1000B | Φ95 | 1400 | Φ75 | 1020 | LGJ1000/80 |
| 17209 | JBZ1250 | Φ114 | 2280 | Φ86 | 1190 | JL1/G2A-1250 |
