Product Details:
Payment & Shipping Terms:
|
| Dimension (mm) L X W X H: | 285x130x231 | Brake Force (N): | 70 |
|---|---|---|---|
| Wire Size Range (mm): | Max 16 | Weight: | 3kgs |
| High Light: | Hot Line Recover Machine Roller,ZN50 OPGW Installation Tools,16mm OPGW Stringing Rollers |
||
OPGW Recover roller machine is used with Mobile Traction Machine,
double sheave support pulleys and fiber ropes for installation of OPGW cable on hot transmissin line.
The product is equipped spring brake system for easy usage.

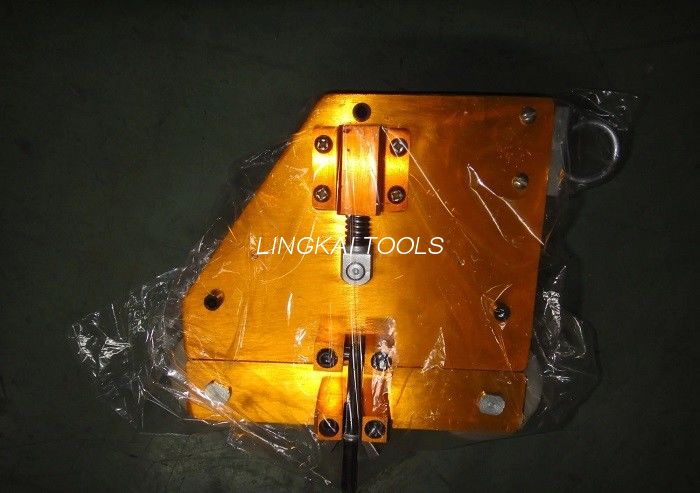

Recover Machine
| Item No. | Model | Wire Size Range (mm) | Brake Force (N) | Weight (kg) | Dimension (mm) L x W x H |
| 20122 | ZN350 | Max. 16 | 70 | 3 | 285x130x231 |
Application: It is used to recover the guide rope and double pulley rollers after OPGW stringing operations.
The spring brake system make the guide rope tighten to prevent it touching the hot transmission line.
Mobile Space Traction Machine
| Item No. | Model | Wire Size Range (mm) | Running Speed (m/min) | Climbing Angle | Horizontal Tensile Strength (N) |
| 20121 | ZZC350 | 9-26 | 17 | 31º | 350 |
Weight: 46.5 Kg. Dimension: 447x488x763 mm.
Remote Control distance: 300-500m.
Petrol Engine Model: YK950/650W.
Electric Motor: 100YYJ140-3 (140W)
Application: It is used to deliver guide rope and double pulley rollers from one steel tower to another,
running on earth wire by self-driving system.
