Product Details:
Payment & Shipping Terms:
|
| Name: | Quadrant Block | Rated Load (KN): | 10 |
|---|---|---|---|
| Bend Radius (mm): | R570 | Dimension: | 760 X 120 X 480 Mm |
| High Light: | Fiber Optic Cable Installation OPGW Roller,Fiber Optic Cable Rollers 10KN,OPGW Installation Tools Quadrant Block |
||

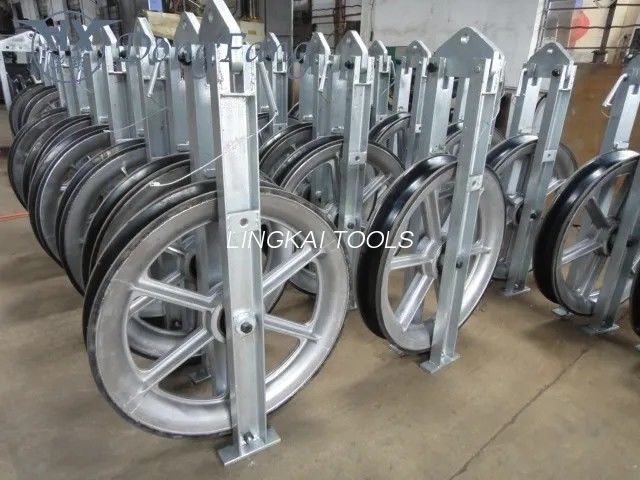

OPGW stringing rollers are used for stringing optic fiber cables on overhead transmission line.
We supply specially designed rollers for different requiremnt.
Quadrant Block for optic fiber cable SHZHD10
| Item No. | Bend Radius (mm) | Dimension (mm) | Rated load (KN) | Weight (kg) |
| 20141 | R570 | 760 x 120 x 480 | 10 | 23.5 |
Application: It is used to string fiber optic cables up to diameter Φ22mm.
All the sheaves are mounted on ball bearings. The frame is made in galvanized steel.
Features: With four wheels structure, large bend radius, light weight.
