Product Details
Place of Origin: NINGBO CHINA
Brand Name: NBLK
Certification: ISO CE
Model Number: ZZ350 ZN350
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Get the latest
Packaging Details: Wooden case packed
Delivery Time: 3-5 days
Payment Terms: T/T
Supply Ability: 2000 sets/month
Remote Control Distance: |
300-500m |
Running Speed (m/min): |
17 |
Electric Motor: |
100YYJ140-3 (140W) |
Climbing Angle: |
31 Degree |
Horizontal Tensile Strength (N): |
350 |
Wire Size Range (mm): |
Ø9-26 |
Dimension: |
447x488x763 Mm. |
Weight: |
46.5 |
Remote Control Distance: |
300-500m |
Running Speed (m/min): |
17 |
Electric Motor: |
100YYJ140-3 (140W) |
Climbing Angle: |
31 Degree |
Horizontal Tensile Strength (N): |
350 |
Wire Size Range (mm): |
Ø9-26 |
Dimension: |
447x488x763 Mm. |
Weight: |
46.5 |
The mobile traction machine is primarily designed and utilized for the project of changing earth wire to OPGW utilizing double pulley rollers and recover roller machines. This highly efficient machine runs on self-driving system and navigates on the earth wire between steel towers.
It is an ideal solution for hot line operation and can be used for other hotline operations as well. The mobile traction machine is capable of delivering guide rope along with double pulley rollers to different towers while utilizing its self-driving mechanism.
Using this machine,a smooth and efficient replacement of the old earth wire with new OPGW cables can take place without any hassle. The double sheaves pulleys and recover roller machines make the entire process efficient and effective.

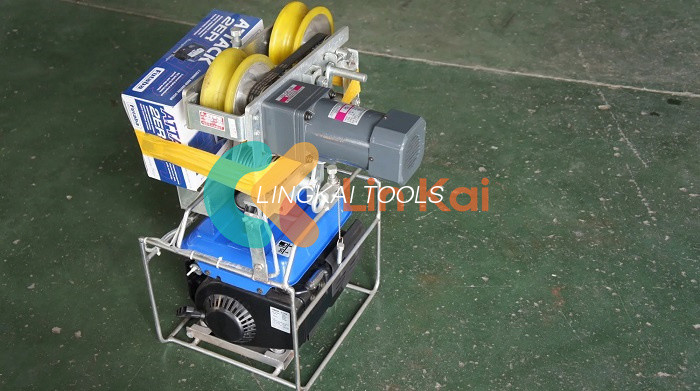

Mobile robot traction machine
| Item No. | Model | Wire Size Range (mm) | Running Speed (m/min) | Climbing Angle | Horizontal Tensile Strength (N) |
| 20121 | ZZC350 | Ø9-26 | 17 | 31º | 350 |
The Self Moving Traction Machine is a tool that is utilized for the delivery of guide rope as well as double pulley rollers from one steel tower to another. It accomplishes this task via a self-driving system that runs on the earth wire.
The Self Moving Traction Machine boasts a number of noteworthy features:
The weight of the product is 46.5 Kg and its dimensions are 447x488x763 mm.
The remote control distance for this product is between 300-500m, providing you with greater flexibility and ease of use from a distance.
The petrol engine model used in this product is the YK950/650W, ensuring reliable performance and high efficiency in its operation.
Additionally, this product features an electric motor with model number 100YYJ140-3, delivering a power output of 140W and excellent reliability over time.
The OPGW installation equipment and tools, which are specially designed and produced, have been developed to facilitate the replacement of old ground wires (earth wires) during overhead live line OPGW projects.
This comprehensive set of equipment includes a hydraulic puller tensioner, motorized winches, mobile traction machines, recover machine, double sheave support rollers, insulated pulling rope, OPGW running out blocks, OPGW socket grips, and an OPGW running board.
Each of these tools has been crafted with the utmost care to ensure maximum effectiveness in changing old ground wires during OPGW projects. The hydraulic puller tensioner, for instance, is designed to put sufficient force on the conductor, while the mobile traction machines are quickly deployed and capable of assisting in the replacement with ease.
