Product Details
Place of Origin: NINGBO CHINA
Brand Name: NBLK
Certification: ISO CE
Model Number: ZZ350 ZN350
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Get the latest
Packaging Details: Wooden case packed
Delivery Time: 3-5 days
Payment Terms: T/T
Supply Ability: 2000 sets/month
Model: |
ZN350 |
Appication: |
OPGW Stringing Operations |
Weight (kg): |
3 |
Wire Size Range (mm): |
Max 16 |
Brake Force (N): |
70 |
Dimension (mm) L X W X H: |
285x130x231 |
Model: |
ZN350 |
Appication: |
OPGW Stringing Operations |
Weight (kg): |
3 |
Wire Size Range (mm): |
Max 16 |
Brake Force (N): |
70 |
Dimension (mm) L X W X H: |
285x130x231 |
The Stringing Blocks Recovery Damper is a device that is usually used together with the Self Moving Traction Machine. These two items are suitable for line change projects that require OPGW spreading or replacing old conductors. The damper and machine work together towards the same goal.
One feature of the Stringing Blocks Recovery Damper and Self-Moving Traction Machine is their simple structure, which makes them convenient to use. Additionally, their operation is easy and straightforward, making them suitable for all kinds of operators.
Please note that for optimal performance, the Stringing Blocks Recovery Damper should be used with the ZZC350 self-moving traction machine. This combination ensures that your work will be done quickly and accurately, with minimal effort and maximum results.

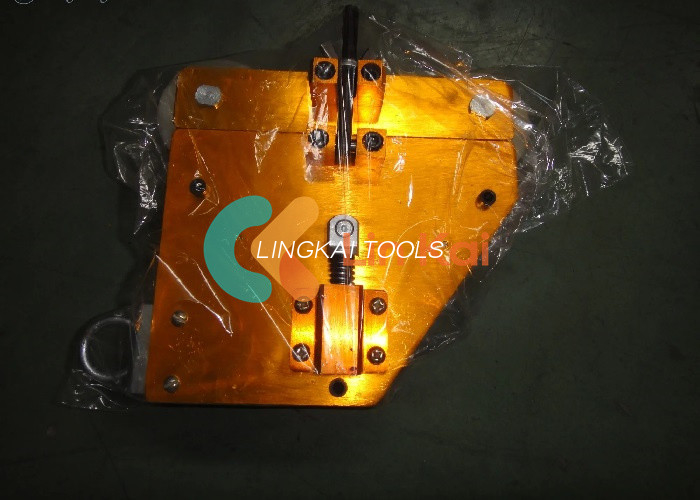

Recover Roller Machine
| Item No. | Model | Wire Size Range (mm) | Brake Force (N) | Weight (kg) | Dimension (mm) L x W x H |
| 20122 | ZN350 | Max. 16 | 70 | 3 | 285x130x231 |
Double Sheaves Replacer Roller
| Item No. | Model | Working load (KN) | Weight (kg) | Dimension (mm) L x W x H |
| 20124 | SH2-OPGW2 | 2 | 2.2 | 128 x 65 x 365 |
Application: It is used to change the old earth wire with new OPGW cables. The sheave is made of aluminum alloy or high strength nylon. All the sheaves are mounted on ball bearings, The frame of roller is made of galvanized steel.
The recover machine plays a vital role in retrieving the guide rope and double pulley rollers used during OPGW stringing operations. To ensure safety, the guide rope must be tightly secured to prevent contact with the hot line.
To operate the recover machine, it must be connected to the end of the guide rope and then retrieved using a serving brake while the guide rope is drawn back by the winch.
The Recover Roller Machine is an essential piece of equipment used in the recovery of guide ropes and double pulley rollers-following OPGW stringing operations. It serves as a reliable means of regaining control and ensuring the safe and efficient collection of these materials.
This machine is specially designed to meet the demanding needs of OPGW stringing projects, where the risk of losing guide ropes and double pulley rollers is high. With its advanced features and sturdy construction, the Recover Roller Machine is highly efficient in managing such operations with ease.
Whether you have a small or major OPGW stringing project, the Recover Roller Machine is a valuable tool that ensures the safe and efficient recovery of guide ropes and double pulley rollers.
Product Packaging:
The OPGW Installation Tools product comes in a durable and sturdy cardboard box with the product name and image printed on the front. Inside the box, the tools are securely placed in a foam insert to prevent any damage during transportation.
Shipping:
Our company ships the OPGW Installation Tools product through reliable and efficient courier services. The package is carefully wrapped and labeled with the customer's address and contact details. We strive to ensure that the product reaches our customers in a timely and safe manner.
