Line Stringing Cable Drum Lifting Jacks , 7T Hydraulic Cable Jack With Motor

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: SPIZ-7K

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: Export term

Delivery Time: 10-15 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 100 sets / month

Get Best Price
Product Details
High Light:

tower safety equipment

,

tower climbing kit

Name:
Conductor Reel Stands
Type:
Hydraulic
Model:
SPIZ-7K
Dia:
<=1700mm
Max Weight:
7T
Lenggth Of Hydruaulic:
13 M Tube
Name:
Conductor Reel Stands
Type:
Hydraulic
Model:
SPIZ-7K
Dia:
<=1700mm
Max Weight:
7T
Lenggth Of Hydruaulic:
13 M Tube
Product Description

Cable Drum Lifting Jacks SIPZ-7H 7T Tower Tools Hydraulic Cable Jack



Cable Drum Lifting Jacks SIPZ-7H 7T Tower Tools Hydraulic Cable Jack

Drum stands with hydraulic motor is used with hydraulic tensioner for supporting conductor drum in transmission line stringing operation.

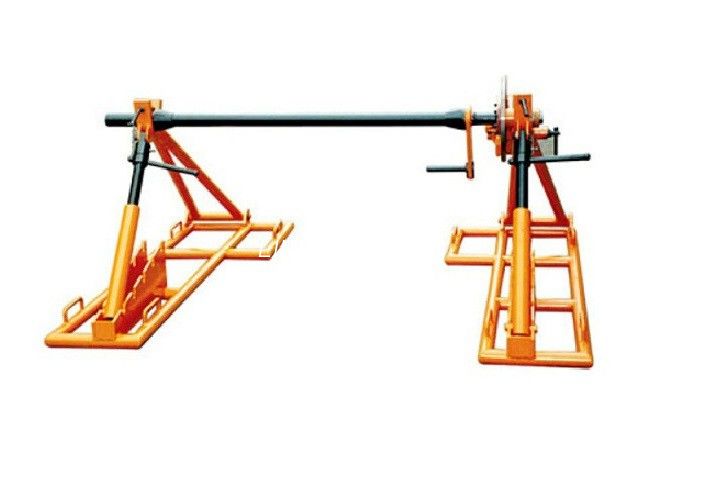

7 Ton Hydraulic reel stand with Motor

Cable Drum Lifting Jacks SIPZ-7H 7T Tower Tools Hydraulic Cable Jack

Item No. Model Accommodated Reel Brake force (N.M) Rotation speed (rpm) Weight (kg)
Diameter (mm) Width (mm) Bore (mm) Max. Weight
15152 SIPZ-7H ≤Φ1250-2500 ≤1400 Φ80-125 7Ton 2000 45 350

Application: It is used to raise and support reels in conductor or earth wire stringing operations. The reel could be controlled by hydraulic motor in both rotation directions. The hydraulic reel stand could be driven by hydraulic tensioner or hydraulic puller tensioner, through 13 meter long hydraulic pipe, with qulick coupling.

Features: It could be disassembled into 3 pieces, easy for transportation.

Hydraulic Conductor Reel Stands

Item number 15151 15152 15153
Model DW2240A SIPZ-7H SIPZ-7K
Applicable reel Diameter of coil (mm) Φ1250~2240 Φ1250~2500 Φ1800~2800
Max width of coil (mm) 1400 1400 1700
Diameter of axle hole (mm) Φ80-125 Φ80-125 Φ80-160
Maximum weight (kg) 5000 7000 8000
Max working torque (N.m) 1200 2000 2500
Max Speed (rpm) 45 45 45
Axle diameter Φ76 Φ76 Φ69
Weight (kg) 270 350 350
Length of hydraulic tube 13 13 13

Line Stringing Cable Drum Lifting Jacks ,  7T Hydraulic Cable Jack With Motor 0
