Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: J40,J52,J95...
Payment & Shipping Terms
Minimum Order Quantity: 2 pcs
Price: negotiable
Packaging Details: Bag
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Name: |
Ratchet Cable Nippers |
Using: |
Coductor Cutting |
Apply: |
Construction Site |
Mode: |
J40,J52,J95... |
Feature: |
Hand Operate |
Weight: |
3.6 Kg |
Name: |
Ratchet Cable Nippers |
Using: |
Coductor Cutting |
Apply: |
Construction Site |
Mode: |
J40,J52,J95... |
Feature: |
Hand Operate |
Weight: |
3.6 Kg |

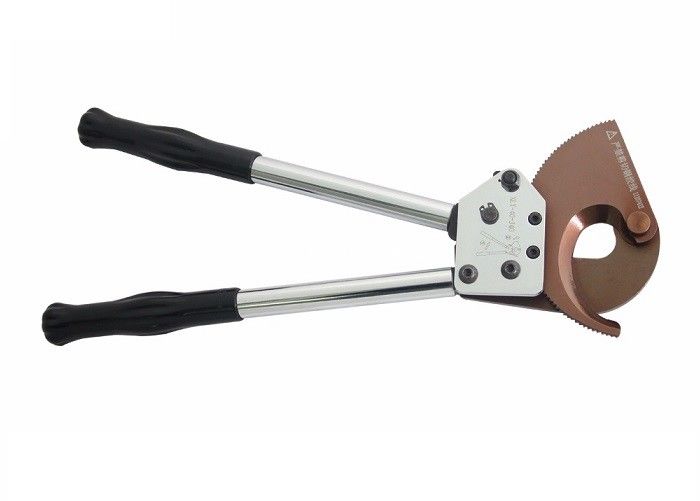

Wire Cable Cutting Scissor Ratchet Conductor Cutter,Ratchet Cable Nippers
Ratchet Cable Cutting Scissor Features:
Wire Cable Cutting Scissor Ratchet Conductor Cutter,Ratchet Cable Nippers:
1. Cutting easily with forging blade and long lifetime
2. Not for cutting steel or steel wire
3. With safety lock
4. Cutting Range:240mm² max.
Different Types of Cable Cutter
Wire Cable Cutting Scissor Ratchet Conductor Cutter,Ratchet Cable Nippers
| 1 | J13 | Cutting Range | ACSR≤720mm2,Prestressed steel wire≤150mm2 |
| Weight | 1.95kg | ||
| 2 | J30 | Cutting Range | ACSR≤630mm2,Prestressed steel wire≤100mm2 |
| Weight | 3.6kg | ||
| 3 | J25 | Cutting Range | ACSR≤800mm2,Prestressed steel wire≤150mm2 |
| Weight | 3.45kg | ||
| 4 | J50 | Cutting Range | ACSR≤1440mm2 |
| Weight | 3.2kg | ||
| 5 | J14 | Cutting Range | steel wire rope≤20mm |
| Weight | 2kg | ||
| 6 | J25A | Cutting Range | steel wire rope≤30mm |
| Weight | 3.55kg | ||
| 7 | J33 | Cutting Range | steel wire rope≤33mm |
| Weight | 5.15kg | ||
| 8 | J40A | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1kg | ||
| 9 | J40B | Cutting Range | Copper&Aluminum Cable ≤240mm2 |
| Weight | 0.65kg | ||
| 10 | J40C | Cutting Range |
For Big blade,Copper&Aluminum Cable ≤300mm2; For small blade,steel cable |
| Weight | 1.1kg | ||
| 11 | J40D | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1.05kg | ||
| 12 | J40 | Cutting Range |
Copper&Aluminum Cable ≤300mm2; 1000 pairs coommunication cable |
| Weight | 1.15kg | ||
| 13 | J52 | Cutting Range | Copper&Aluminum armoured cable≤500mm2 |
| Weight | 3.1kg | ||
| 14 | J75 | Cutting Range |
Copper&Aluminum armoured cable≤3×120mm2; Copper&Aluminum armoured cable≤75mm; 3600 pairs coommunication cable |
| Weight | 3.6kg | ||
| 15 | J95 | Cutting Range |
Copper&Aluminum armoured cable≤3×185mm2; Copper&Aluminum armoured cable≤95mm |
| Weight | 5kg | ||
| 16 | J100 | Cutting Range |
Copper&Aluminum armoured cable≤3×300mm2; Copper&Aluminum armoured cable≤100mm |
| Weight | 6.6kg | ||
| 17 | J130 | Cutting Range | Copper&Aluminum armoured cable≤130mm |
| Weight | 8.3kg | ||
| 18 | J160 | Cutting Range | Copper&Aluminum armoured cable≤160mm |
| Weight | 11.1kg |
Ratchet Cable Cutter Tool
Including handle device, cutting device and propulsion, the propulsion of the shear clamp is using two gear transmission, to drive the activity card teeth on the cutter body move forward, make activity and fixed blade knife body formed by the blade of the circular department gradually narrowed, in order to achieve the effect of shear, gear in the direction of the tangent to push the gear on the blade, and the gear tooth blade push activities with multiple card of card, scatter push force on the card of tooth, tooth is not easy to damage, make the card to extend its service life.
Characteristic Wire Cable Cutting Scissor Ratchet Conductor Cutter,Ratchet Cable Nippers
Suitable for cutting of copper and aluminum core armored cable;
Simple operation, easy to carry;
atchet propulsion, shear more effort;
The overall heat treatment of high strength, shear blades, large range of.
Please click below picture to find the video about application method
