CH-60 31Ton Output Hydraulic Busbar Hole Puncher,Hydraulic Puncher Machine
Technology Parameters:CH-60 31Ton Output Hydraulic Busbar Hole Puncher,Hydraulic Puncher Machine.Hydraulic Hole Puncher
Application:CH-60 31Ton Output Hydraulic Busbar Hole Puncher,Hydraulic Puncher Machine
Hydraulic Busbar Hole Puncher,Hydraulic Puncher Machine

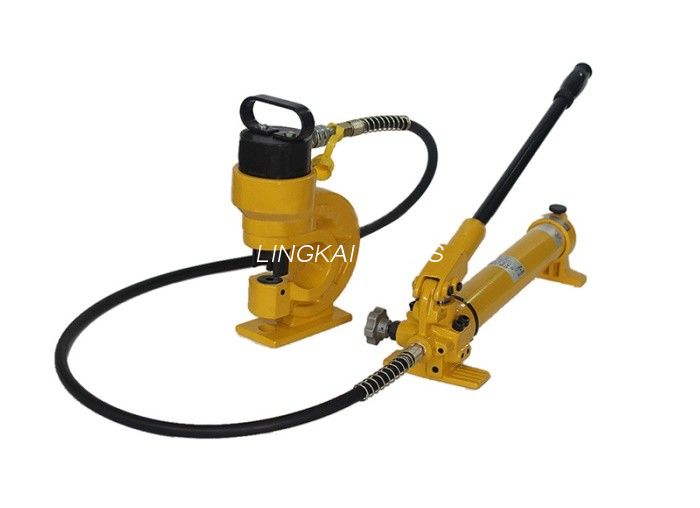

It is a remote control tool, works with an extremal hydraulic pump(Hand Foot or Electric pump). It is desighed to punch round holes on Cu/Al Busbar.With 4 pairs standard punching dies(10.5/13.8/17/20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Features:CH-60 31Ton Output Hydraulic Busbar Hole Puncher,Hydraulic Puncher Machine
Operation speed of CH-60 Hydraulic Hole Puncher is fast than electric drill. It only need a few seconds for punching and there is no burr after punching.
With pressing mechanism design, punching precision is good.
With the hydraulic pump as power, it can used in no power site.
1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range
2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies according to application
3. Dies Size: 10.5mm 13.8mm 17mm 20.5mm
4. Punching Dies Customization is Available if samples and Drawings can be provided
5. Package: Steel Case or Wooden Case
