Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LGS
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Customized
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000pcs/month
Name: |
Ladder |
Type: |
With Hook |
Material: |
Aluminum Alloy |
Apply: |
For Installation Tower |
Model: |
LGS |
Bearing Weight: |
150kg |
Name: |
Ladder |
Type: |
With Hook |
Material: |
Aluminum Alloy |
Apply: |
For Installation Tower |
Model: |
LGS |
Bearing Weight: |
150kg |

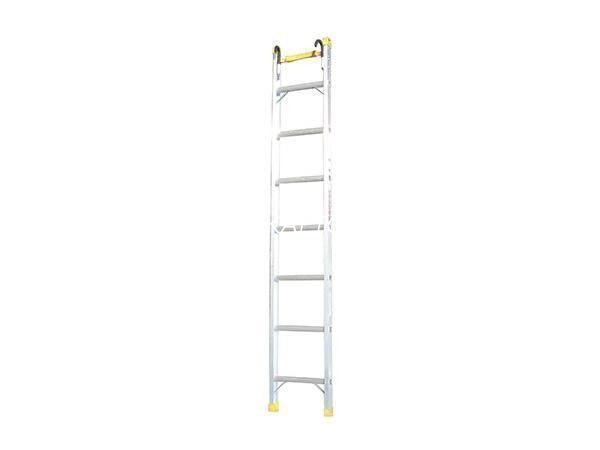

Model LGS Llight Handy Aluminum Alloy Ladder Equipped With Hook For Tower
This aluminum alloy ladder is light, handy, and easily portable. It is equipped with the hook, the D shaped anti-skid ladder rung, as well as the anti-skid tape of telegraph pole.
Main Specifications
| Item Number | Model | Full Length (mm) | Contraction Length (mm) | Bearing Weight (kg) | Dead Weight (kg) |
| 22245A | LGS-25 | 2500 | 150 | 5.0 | |
| 22245B | LGS-30 | 3000 | 5.5 | ||
| 22245C | LGS-35 | 3500 | 6.1 | ||
| 22245D | LGS-40 | 4000 | 6.6 | ||
| 22246A | LGS-40 | 4000 | 2700 | 13 | |
| 22246B | LGS-50 | 5000 | 3700 | 15 | |
| 22246C | LGS-60 | 6000 | 3900 | 18 | |
| 22246D | LGS-70 | 7000 | 4200 | 20 |
Precautions
1. Firstly, the metal ladder is conductive, so the live working is prohibited.
2. Each component should be checked in advance to know whether it is in good condition.
3. Our aluminum alloy ladder must not be used on the soft, rough or sloping ground, or the ground with steps.
4. While climbing, our user should face to the ladder and tightly hold the ladder pole.
5. Our user must not stretch his body excessively or force himself to work, so that the unsteady center of gravity causing accidents can be effectively prevented.
6. When our user climbs with their objects, overweight should be avoided.
7. If the ladder is not high enough, our user can not connect our product with long ladder legs for use by himself.
Insulating Ladder
| Item Number | Model | Material | Applicable Range |
| 22247-2 | Ellipse 38×56×5×2000 | 3640 Dioxygen Phenolic Pipe | Transformer Substation Transmission Line |
| 22247-3 | Ellipse 38×56×5×3000 | ||
| 22247-4 | Ellipse 39×57×5×4000 | ||
| 22247-5 | Ellipse 40×58×5×5000 | ||
| 22248-2.5 | Square Tube 60×30×3×2500 | 3240 Winding Epoxy Pipe | |
| 22248-3 | Square Tube 60×30×3×3000 | ||
| 22248-4 | Square Tube 60×30×3×4000 | ||
| 22248-5 | Square Tube 60×30×3×5000 |
