Pulling Rope Balancing Head Board / Four Bundle Conductors Running Boards

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: SZ4

Payment & Shipping Terms

Minimum Order Quantity: 2SETS

Price: Get the latest

Packaging Details: Carton,wooden case

Delivery Time: 5-8work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000pcs/week

Get Best Price
Product Details
High Light:

tower safety equipment

,

tower climbing kit

Material:
Galvanized Steel
Model:
SZ4B
Rated Load:
13, 32T
Material:
Galvanzied Steel
Weight:
139kg
Certifaication:
ISO CE
Material:
Galvanized Steel
Model:
SZ4B
Rated Load:
13, 32T
Material:
Galvanzied Steel
Weight:
139kg
Certifaication:
ISO CE
Product Description

Balancing Head Board Running Boards for Pulling Rope and Four Bundle Conductors



Head Boards for pulling rope and 4/6/8 bundles conductor is specifically designed to connect the pulling rope, with 4/6/8 bundled conductors.

Head Boards for pulling rope and 4/6/8 bundles conductor
Head Boards for pulling rope and 4/6/8 bundles conductor is specifically designed to connect the pulling rope, with 4/6/8 bundled conductors.The equipment includes the necessary rope lengths and swivel joints; quantity and models are indicated in the following tables. Special models with different characteristics can be designed according to customers' requirement.


Running board for four bundle conductors Technical Parameters
Item Number Model Rated Load (kN) Weight (kg) Width of Applicable Sheave (mm) Features
17231 SZ4A-13 130 96 100 Balanced pulley type
17232 SZ4B-13 130 65 100 Conductors are independent of each other.
17233 SZ4B-18 180 95 110 Conductors are independent of each other.
17234 SZ4B-25 250 110 110 Conductors are independent of each other.
17238 SZ4C-25 250 88 110 Conductors are independent of each other.
17239 SZ4B-32 320 150 125 Conductors are independent of each other.

Application: It is used for stringing 4/6/8 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 4/6/8 bundled conductors which are pulled from same bull wheels of tensioner.The running boards are supplied with pulling rope swivels and conductor swivels to match linepull and tension requirements.

Special Sizes can be customized.

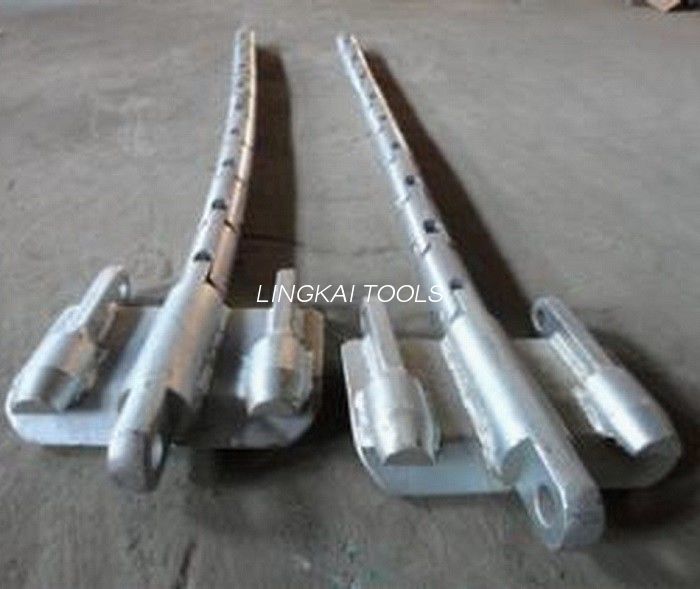

Pulling Rope Balancing Head Board / Four Bundle Conductors Running Boards 0
