Product Details
Place of Origin: ningbo china
Brand Name: Linkai
Certification: iso ce
Model Number: ST48
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: get the latest
Packaging Details: wooden case
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200pcs/day
Model: |
St48-4 |
Rated Load: |
4x12 Kn |
Hook Slot Length: |
120mm |
Weight: |
35kg |
Apply: |
Four Bundle |
Use: |
For Lifting Wire |
Model: |
St48-4 |
Rated Load: |
4x12 Kn |
Hook Slot Length: |
120mm |
Weight: |
35kg |
Apply: |
Four Bundle |
Use: |
For Lifting Wire |

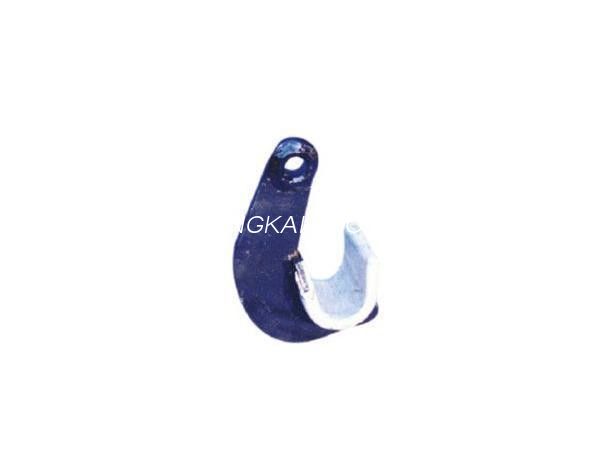

Four Bundled Conductor Lifter For Lifting, Four Bundle Conductor Lifting Tools
| Order number | 19101 | 19102 | 19103 | 19104 |
| Model | ST8 | ST12 | ST25 | ST40 |
| Rated load (kN) | 8 | 12 | 25 | 40 |
| Bracket length (mm) | 60 | 120 | 200 | 260 |
| Weight (kg) | 0.9 | 2.5 | 7 | 10.5 |
Two bundled conductor lifter
| Order number | 19112 | 19113 | 19114 |
| Model | ST25R | ST50R | ST80R |
| Rated load (kN) | 2×12 | 2×25 | 2×40 |
| Bracket length (mm) | 120 | 200 | 260 |
| Weight (kg) | 13 | 26 | 40 |
| Order number | 19111 |
| Rated load (kN) | 2×12.5 |
| Bracket length (mm) | 120 |
| Conductor seperation distance (mm) | 400450 |
| Weight (kg) | 5 |
| Order number | 19108 |
| Rated load (kN) | 3×12 |
| Weight (kg) | 21 |
| Order number | 19115 | 19116 | 19117 |
| Model | ST50S | ST100S | ST160S |
| Rated load (kN) | 4×12 | 4×25 | 4×40 |
| Bracket length (mm) | 120 | 200 | 260 |
| Weight (kg) | 35 | 67 | 97 |
Earth wire lifter
| Order number | Model | Rated load (kN) | The safety factor | Weight (kg) | Note |
| 19121 | STD-1 | 10 | 3 | 3.2 | For pylon |
| 19122 | STD-2 | 3 | 3 | 4 | For pole |
