Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: QHL
Payment & Shipping Terms
Minimum Order Quantity: 5PCS
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/WEEK
NAME: |
ALUMINUM PULLEY BLOCK |
ITEM: |
HOISTING TACKLE |
RATED LOAD: |
2TON |
MATERAIL: |
ALUMINUM SHEAVE |
APPLY: |
FOR ERECT THE ROWER |
WEIGHT: |
2.9KG |
NAME: |
ALUMINUM PULLEY BLOCK |
ITEM: |
HOISTING TACKLE |
RATED LOAD: |
2TON |
MATERAIL: |
ALUMINUM SHEAVE |
APPLY: |
FOR ERECT THE ROWER |
WEIGHT: |
2.9KG |

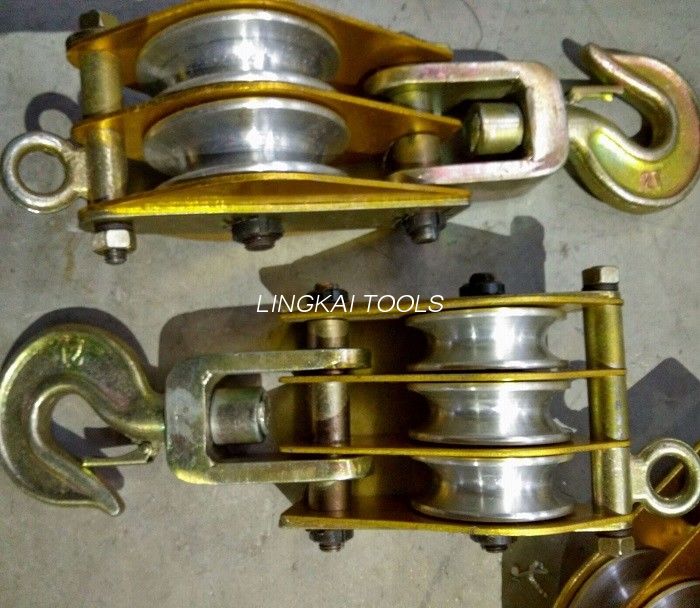

2 Ton Aluminum Sheave Hositing Tackle Transmission Line Stringing Aluminum Pulley Block
Hoisting Tackle (Aluminum sheave)Products:
|
Item number |
Model |
Number of sheaves |
Rated load (kN) |
(MM) Roller Diaxwidth |
(mm) MAX. Rope Diamete |
Weight (kg) |
| 11301 | QHL1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11302 | QHL1x2 | 2 | Φ80×27 | Φ6 | 2 | |
| 11303 | QHL1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11311 | QHL2x1 | 1 | 20 | Φ120×35 | Φ10 | 3 |
| 11312 | QHL2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11313 | QHL2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11321 | QHL3x1 | 1 | 30 | Φ150×39 | Φ11 | 4 |
| 11322 | QHL3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11323 | QHL3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11331 | QHL5x1 | 1 | 50 | Φ166×40 | Φ13 | 6 |
| 11332 | QHL5x2 | 2 | Φ150×39 | Φ11 | 6 | |
| 11333 | QHL5x3 | 3 | Φ120×35 | Φ10 | 7 | |
| 11341 | QHL8x1 | 1 | 80 | Φ205×49 | Φ18 | 9 |
| 11342 | QHL8x2 | 2 | Φ166×40 | Φ13 | 9 | |
| 11343 | QHL8x3 | 3 | Φ150×39 | Φ11 | 10 | |
| 11351 | QHL10x1 | 1 | 100 | Φ246×60 | Φ20 | 12 |
| 11352 | QHL10x2 | 2 | Φ166×40 | Φ13 | 12 | |
| 11353 | QHL10x3 | 3 | Φ150×39 | Φ11 | 13 |
Quick Information:
1. Lingkai brand
2. Hoisting tackle with Aluminum sheave
3. Rated load is 20KN
Aluminum wheel hoisting tackle configuration:
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Features:Product is made of aluminum alloy plate with aluminum alloy wheel,it has light weight.
Specification:Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
