Product Details:
Payment & Shipping Terms:
|
| NAME: | Hoisting Block | Type: | Dual-sheave |
|---|---|---|---|
| Feature: | Both Side Opening | Rated Load: | 5T |
| Rope Diameter: | <=15.5mm | Weight: | 16kg |
| High Light: | tower climbing equipment,tower safety equipment |
||

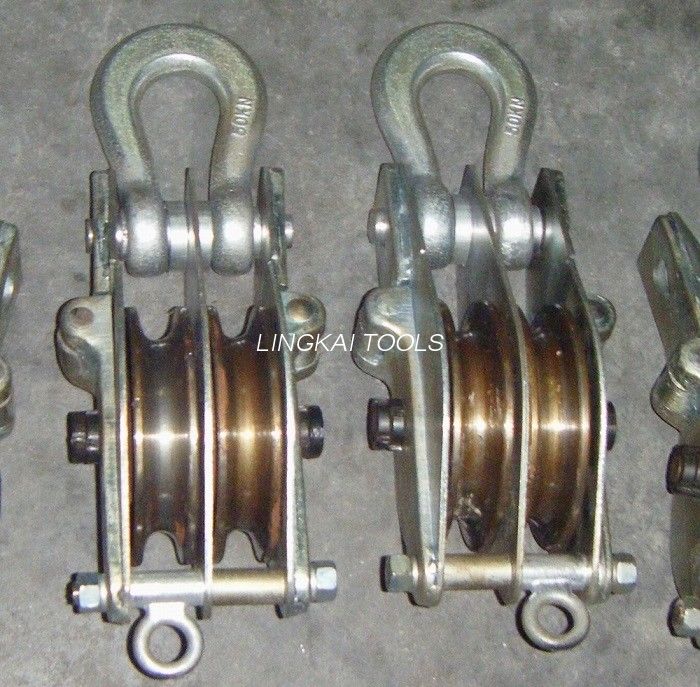

QHS Model 50KN Dual-Sheave Hoisting Tackle with Both Side Opening Iron Hoisitng Block
Hoisting Tackle(Both Side Opening With Dual-Sheave)
|
Item number |
Model |
Rated load (kN) |
(MM) Roller Dia×width |
Rope Diameter (mm) |
Weight (kg) |
| 11281 | QHS2-3 | 30 | Φ120×35 | ≤Φ10 | 6.3 |
| 11282 | QHS2-5 | 50 | Φ150×39 | ≤Φ11 | 11.0 |
| 11283 | QHS2-8 | 80 | Φ166×40 | ≤Φ13 | 16.0 |
| 11284 | QHS2-10 | 100 | Φ166×40 | ≤Φ13 | 18.0 |
Quick Information:
1. Donghuan Brand
2. 50KN rated load
3. Model QHS2-5
4. Type Both side opening Sheave
5. Suitable for <=11mm steel wire rope
6. Diameter roller is 150*39mm
Double Sheave Hoisitng Tackle Configuration:
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Features:Loading and unloading steel wire rope conveniently with double side opening.
Specification:Hook or ring type is need indicated when customer place order.
